DRV8876RGTR Motor / Motion / Ignition Controllers & Drivers 40-V 3.5-A H-bridge Motor Driver With I

Product Categories
Shenzhen Filetti Technology Co., LTD
Contact Now

DRV8876RGTR Motor / Motion / Ignition Controllers & Drivers 40-V 3.5-A H-bridge Motor Driver With I

Brand Name : TI

Model Number : DRV8876RGTR

Certification : ROHS

Place of Origin : CN

MOQ : 1

Price : consult with

Payment Terms : T/T,Western Union

Supply Ability : 10000

Delivery Time : 5-8day

Packaging Details : T/R

Product Category : Motor / Motion / Ignition Controllers & Drivers

Load Voltage Rating : 37 V

Number of Outputs : 2 Output

Package / Case : VFQFN-16-EP(3x3)

Minimum Operating Temperature : -40℃

Maximum Operating Temperature : +125℃

Supply Voltage - Max : 37 V

Supply Voltage - Min : 4.5 V

Contact Now

DRV8876RGTR Motor / Motion / Ignition Controllers & Drivers
Product Overview
40-V 3.5-A H-bridge Motor Driver with integrated current sensing and protection features for brushed DC motor applications.
Key Features
  • N-channel H-bridge motor driver
  • Drives one bidirectional brushed DC motor or two unidirectional brushed DC motors
  • 4.5-V to 37-V operating supply voltage range
  • 700-mΩ RDS(on) (High-Side + Low-Side)
  • 3.5-A peak output current capability
  • Integrated current sensing and regulation
  • Proportional current output (IPROPI)
  • Selectable current regulation (IMODE)
  • Multiple input control modes (PH/EN, PWM, independent half-bridge)
  • Supports 1.8-V, 3.3-V, and 5-V logic inputs
  • Ultra low-power sleep mode (<1-µA)
  • Spread spectrum clocking for low EMI
  • Comprehensive protection features: UVLO, CPUV, OCP, TSD
  • Fault indicator pin (nFAULT)
Applications
  • Brushed DC motors
  • Major and small home appliances
  • Vacuum, humanoid, and toy robotics
  • Printers and scanners
  • Smart meters
  • ATMs, currency counters, and EPOS systems
  • Servo motors and actuators
Technical Specifications
Part Number Package Body Size (Nominal)
DRV8876 HTSSOP (16) 5.00 mm × 4.40 mm
DRV8876 VQFN (16) 3.00 mm × 3.00 mm
Product Images

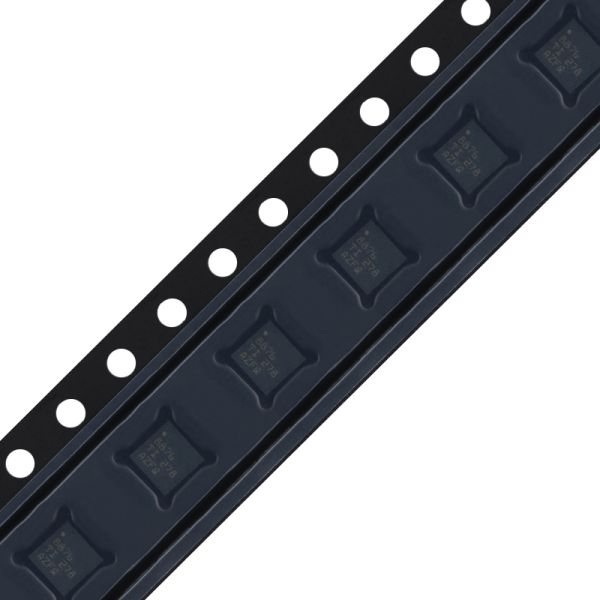

DRV8876RGTR Motor / Motion / Ignition Controllers & Drivers 40-V 3.5-A H-bridge Motor Driver With I DRV8876RGTR Motor / Motion / Ignition Controllers & Drivers 40-V 3.5-A H-bridge Motor Driver With I DRV8876RGTR Motor / Motion / Ignition Controllers & Drivers 40-V 3.5-A H-bridge Motor Driver With I
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
